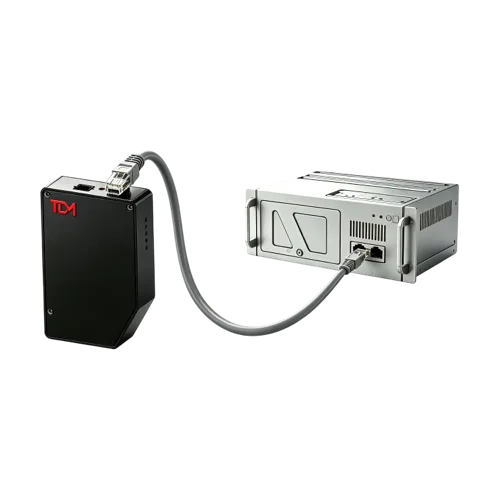

SE31-FM Wide Band Dual-Use Optical Film Thickness Monitor

Specification

Spectral Range	350nm ~ 2400nm (Visible + Near-infrared Full Band)
Measurement Mode	Transmission (T) / Reflection (R) Intelligently Auto-switching
Wavelength Resolution	< 0.2nm (High-resolution Spectrum Acquisition & Analysis)
System Noise Level	± 0.001% (Ensuring Long-term Data Stability)
Monitoring Accuracy	Film thickness accuracy ±0.1% (Based on standard optical film systems)
Communication & Control	RS-232/485, TCP/IP, Analog Output, PLC Integration Supported
Compatible Materials	SiO₂, MgF₂, Al₂O₃, Ta₂O₅, Nb₂O₅, TiO₂, Si₃N₄, etc.

Core Advantages
