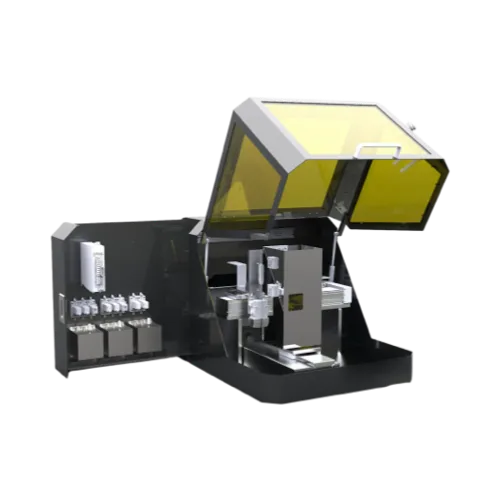

IJPMaster-R Desktop Inkjet Printing Tool
The IJPMaster-R is a Desktop Inkjet Printing Tool from TDM Technology. IJPMaster-R desktop inkjet printing tool for Perovskite, NiOx, SAMs, SnO₂, Al₂O₃, PEAI and related inks. Max 100mm × 100mm substrate, one-pass printing, 1–12 cps viscosity with Fujifilm Dimatix or Konica Minolta print heads, integrated ink supply and Drop-Watcher. It is part of the Inkjet Printing Tool series.
Functionalities
Applicable ink (printing head dependent): Perovskite, NiOx, SAMs, SnO₂, Al₂O₃, PEAI, et al.
Substrate size: max. 100mm × 100 mm
One-pass printing
Viscosity applicable (printing head dependent): 1~12 cps
Optional printing head: Fujifilm Dimatix, Konica Minolta
Customization available upon request
Features
Industry class drop accuracy
Integrated ink supply and printing management
Automatic printing head maintenance
Integrated ink circulation
Integrated Drop-Watcher
Compact Size: 600 mm (W) × 800 mm (D) × 600 mm (H)
